TRACKLAB
World Class Solar Technology
World-class single-axis solar tracking systems, designed and manufactured locally with over 30 years of expertise in solar, mining, and power electronics.
Learn More
Global Design and Innovation, with Local Expertise
At TrackLab, we produce world-class solar technology, proudly created in Africa. We have over 30 years' experience in solar technology design and development in embedded control systems in Southern Africa.
Years Experience
0+Locally Supported
0%Next-Gen System Control Network
Our real-time control system leverages LoRa and high-speed telemetry to keep your rows aligned autonomously.
Precision Engineered Solar Architecture
We build integrated solar tracking control systems built for verified industry context, practical deployment requirements, and documented engineering discipline.
COMPLY
Built with verified industry context, practical deployment requirements, and documented engineering discipline.
Learn MoreDESIGN
Integrated system design for maximum efficiency, structural integrity, and custom topologies in every project.
Learn MoreCONFIGURE
Customizable configurations and embedded software designed to suit your specific site topology, ensuring local support.
Learn MoreRobust Tracking Hardware & Embedded Software
Explore the core components of the TrackLab system, delivering unmatched durability, real-time wireless communication, and intelligent power electronics in the field.

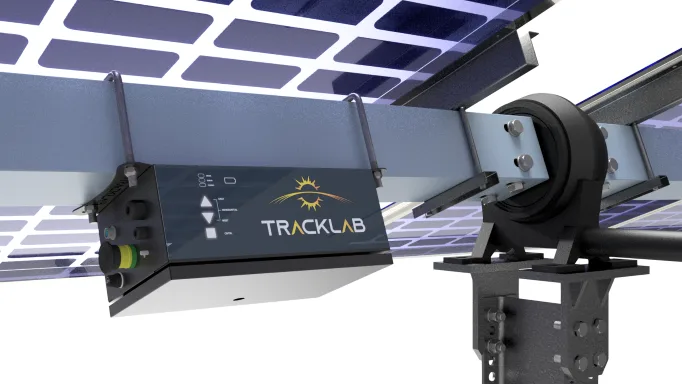

Tracker Controller Unit (TCU)
Embedded controller mounted on each row. Features hybrid astronomical and closed-loop tilt sensor algorithms for precision tracking.
Learn MoreNetwork Control Unit (NCU)

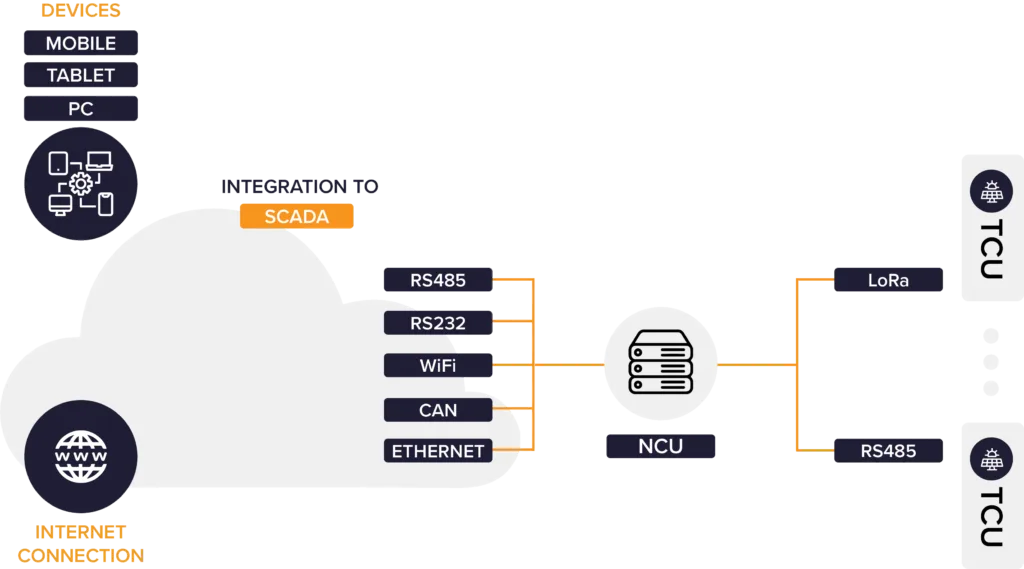

Central coordinator managing row data over LoRa wireless, RS485, CAN-2.0, or Fibre, featuring an integrated commissioning web service.
Learn MoreMonitoring & Reporting
Extensive data logging, remote web interface access, and optional integration with South African Weather Services for automatic wind stowing.
Learn MorePower & Drive Systems
PV module or string-powered (up to 1500Vdc) backup lithium-ion charging system with CC/CV charger and high-torque DC motor drive.
Learn MoreOver 30 Years of Solar, Mining & Power Electronics Expertise
Developed by Lumax Energy in Midrand, South Africa, TrackLab represents the pinnacle of Southern African engineering. Our systems are built to withstand harsh mining and industrial environmental climates.
Pioneering Solar Deployments Across Southern Africa

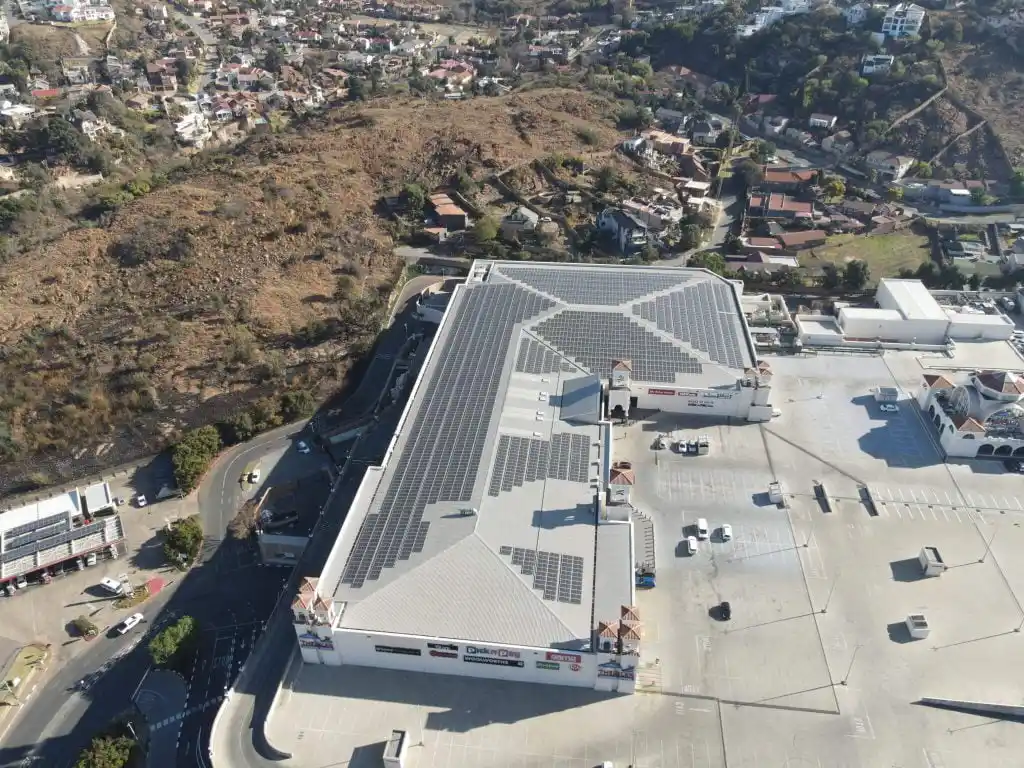

Commercial Solar Farms
Large-scale utility tracking networks utilizing LoRa wireless, CC/CV lithium battery charging systems, and automated cloud wind-stowing mechanisms.
Explore Specifications

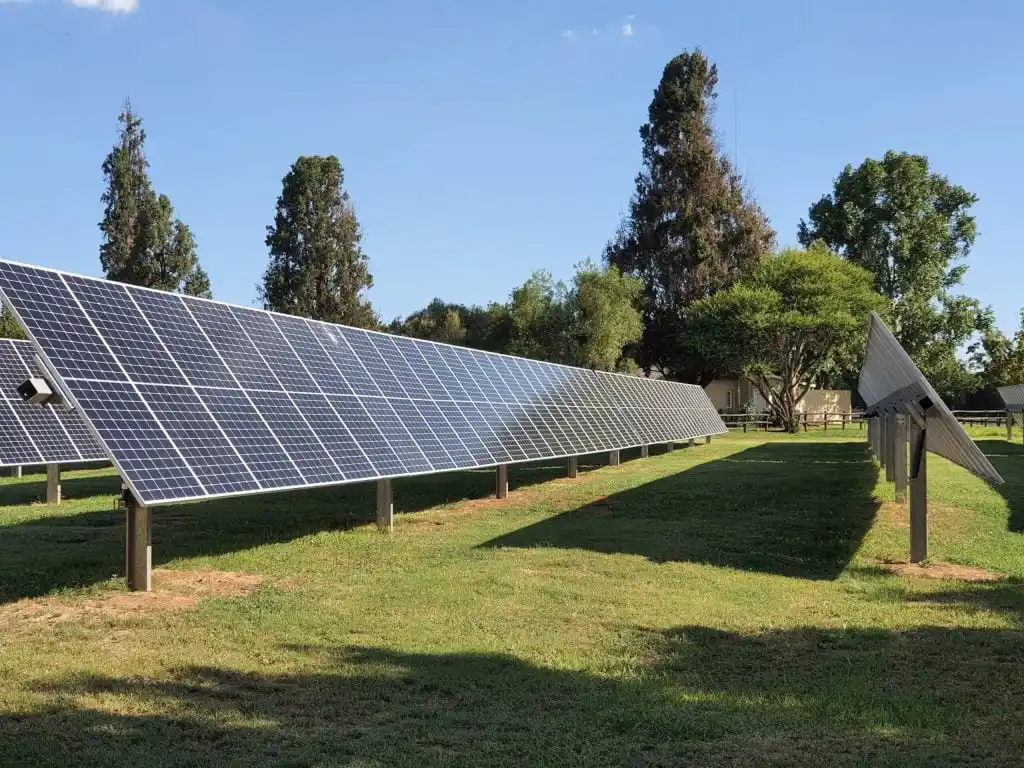

Industrial & Mining Microgrids
Robust, stainless-steel IP65/NEMA4X tracking setups designed to endure extreme temperature shifts and dust in remote mining facilities.
Explore SpecificationsCompute your sun-tracking advantage.
Traditional solar systems sit stagnant. TrackLab's single-axis structural tracker actively pivots to follow the sun. Compare the performance gains and amortization rates yourself.
Clear Answers to Your Questions
Everything you need to know about our single-axis solar tracking controllers, wireless communications, weather stowing, and system customization.
How does TrackLab's hybrid tracking algorithm work?
TrackLab combines a high-precision astronomical solar tracking algorithm with a closed-loop tilt sensor (inclinometer). This ensures maximum alignment accuracy even on overcast days, utilizing real-time sensor telemetry for continuous slope and positioning correction.
What power options are available for the Tracker Controller Unit (TCU)?
The TCU can be powered directly via a dedicated PV module (12–55Vdc) or through string power inline (200–1500Vdc). Each unit contains a built-in 24V Lithium-Ion backup battery (3.3Ah / 6.6Ah) with intelligent constant current, constant voltage (CC/CV) charging.
How does the system handle high wind speeds and storm conditions?
The Network Control Unit (NCU) continuously monitors real-time wind speed and wind direction from integrated weather stations. Optionally integrated with South African Weather Services, it automatically commands all rows to stow in a safe horizontal position during high-wind alerts.
Can the TrackLab system be customized for specific project requirements?
Yes! TrackLab is designed, manufactured, and supported locally in South Africa by Lumax Energy. We can custom-tailor hardware enclosure characteristics (e.g. powder-coated 3CR12 stainless steel) and embedded software configurations to match your site-specific layout and wind load profiles.
